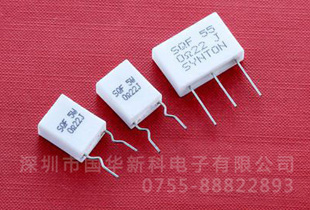

Metal Plate Non-inductive Cement Type Resistors （MPR-E）
金属片无感水泥型电阻器（MPR-E型）
|
|
Features
特点
|
1.Good heat-durability, low temperature coefficient, low noise, high load power, high insulating capacity.
耐热性好、温度系数小、噪声低、负荷功率大、绝缘性高。
2.Operating ambient temperature 使用环境温度 :-55℃~+275℃
3.Resistance tolerance阻值误差:±5%,±10%.
|
|
Characteristics性能
Item 项目
|
|
|
|
Specifications规格值
|
Test Method JIS 5202 测试方法
|
|
H±2
|
d±0.1
|
p±1.0
|
E12·J(±5%)
|
E12·J(±10%)
|
|
Temperature coefficient
温度系数
|
±350ppm/°C
|
5.2 condition B
条件B
1W-3W: 5 times rated power for 5 seconds.2.5倍额定电力，5秒
5W-20W: 10 times rated power for 5seconds.10倍额定电力，5秒
5.7
|
|
13.0
|
0.8
|
9.0
|
0.01-0.68
|
0.01-0.68
|
|
Short time overload
短时间过负荷
|
ΔR≤±(2% R0+0.05Ω)
|
|
Dielectric withstanding voltage
耐电压
|
500V
|
|
|
|
Load life in humidity
耐湿负荷寿命
|
ΔR≤±(3% R0+0.05Ω)
|
7.9
7.10
JIS 5026 6.7
|
20
|
|
0.05-1.0
|
|
Load life 室温寿命
|
ΔR≤±(3%R0+0.05Ω)
|
10
|
0.22-0.56
|
0.03-0.56
|
|
Thermal Shock热冲击
|
ΔR≤±(2% R0+0.05Ω)
|
|
|
|
|
|
|
